Detail

HT-CDD5

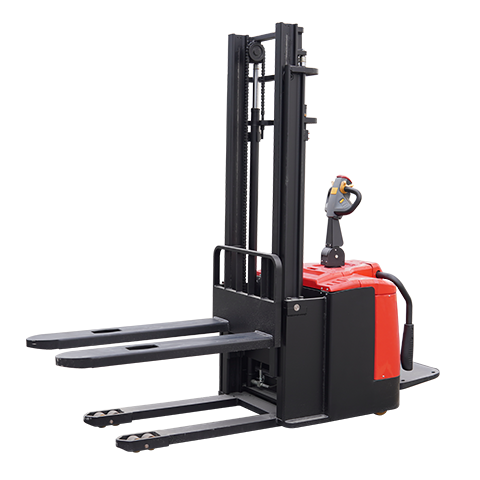

Self Lifting Stacker

500-1000kg
Load capacity
1844-2870mm
Lift Height
walkie
Type ofoperation

· Loading capacity: 500kg, 1000kg is optional.
· Fully automatic and semi-automatic optional
· Lifting height is 1840 - 2870mm. At max lifting height, the loading is no reduce.

Request a Quote

Configuration

Operating handle

Thickened fork

Door frame

Oil cylinder

Steering tires

Features

Semi-electric self-loading stacker,electric lift and hand-push movement, more economical.
Fully electric self-loading stacker, electric lift, electric movement, saves energy and improves efficiency.
Add the design of the guide rail, makes pushing and pulling the goods more labor saving and convenient.
Explosion-proof valve design, down more stable and reliable.

Video

Specs & Compare

Product number HT-CDD5

Load capacity

500-1000kg
Wheelbase

787-974mm
Overall Length

1544-1676mm
Overall Width

658-835mm
Lift Height

1844-2870mm
Lowered mast height

1107-1666mm
Fork Dimension

1195-1195mm
Ground Clearance at center of wheelbase (Min)

81mm
Turning Radius

1147/1173mm
Type ofoperation

walkie

Request a Quote

Tips: If you use WhatsApp, please fill it out and we will contact you faster.

Don't forget to fill in the area code.

Equipment

User name

* Contact Information

Project Location

More Specifics
